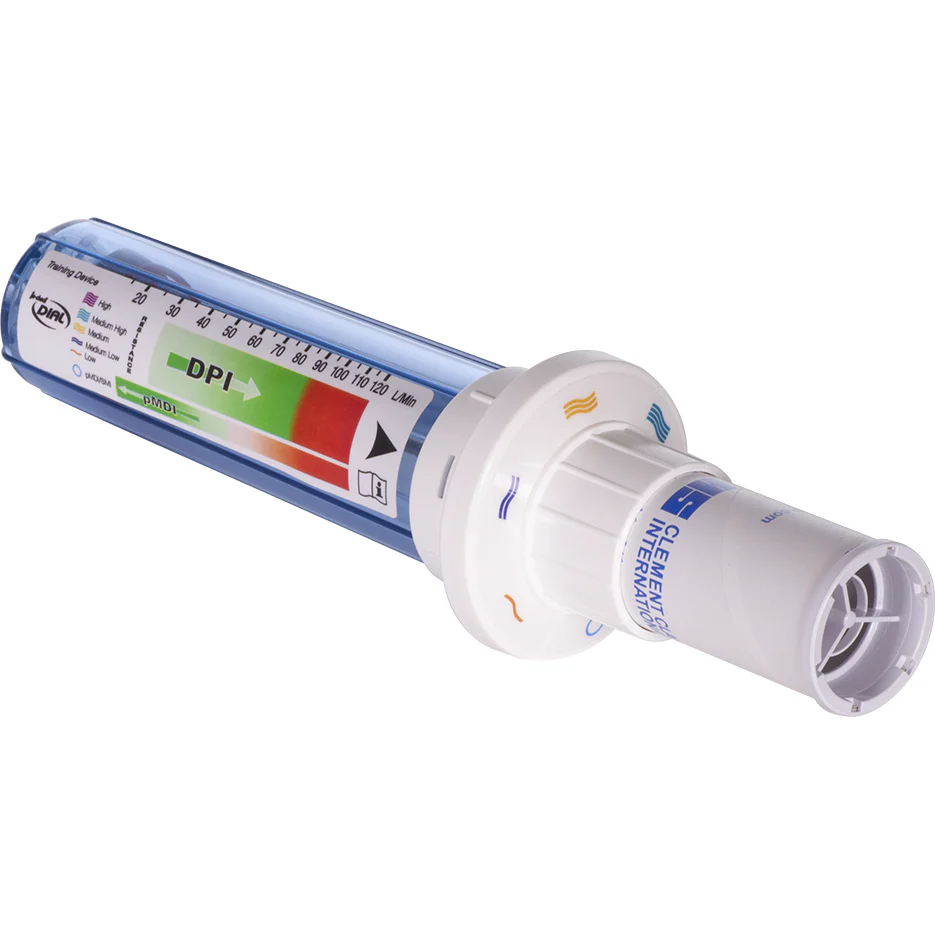

In-Check DIAL G16 enables healthcare professionals to coach patients to use their inhalers correctly. The device measures peak inspiratory flow rate, and can simulate the resistance characteristics of the specific inhaler of a patient, providing the device is set on the correct setting. The patient can then be trained to inhale at a flow rate known to be suitable for their personal DPI or pMDI.

The former In-Check DIAL has been revised, now grouping inhalers as a function of their internal airflow resistance, in order to accommodate information on the new devices. There are six resistance groups, five of which relate to dry powder inhalers (DPIs) and one of which to pressurised metered dose inhalers (pMDIs). A guide to identify the resistance group for each inhaler is provided on the In-Check DIAL and on the associated guide. The ability to use In-Check DIAL to measure specific flow rate of a particular inhaler can still be achieved through the use of a specific restrictive adapter. An example adapter is now included in the pack.

Groups inhalers as a function of their internal airflow resistance, in order to accommodate new inhaler devices
Individually calibrated for accuracy
Easy to clean, by simple washing
To coach DPI or pMDI inhaler technique
Patients learn to inhale at the correct flow rate
Inhaler training can be conducted quickly
Low-cost, simple yet effective method of inhaler technique training

Technical data

Dimensions: 174 x 58mm - w/o mouthpiece, 213 x 58 - with mouthpiece
Weight: 106g
Measurement Range: 15 - 120 L/min
Accuracy: ±10% or 10 L/min
Repeatability: 5 L/min

Clinical efficacy

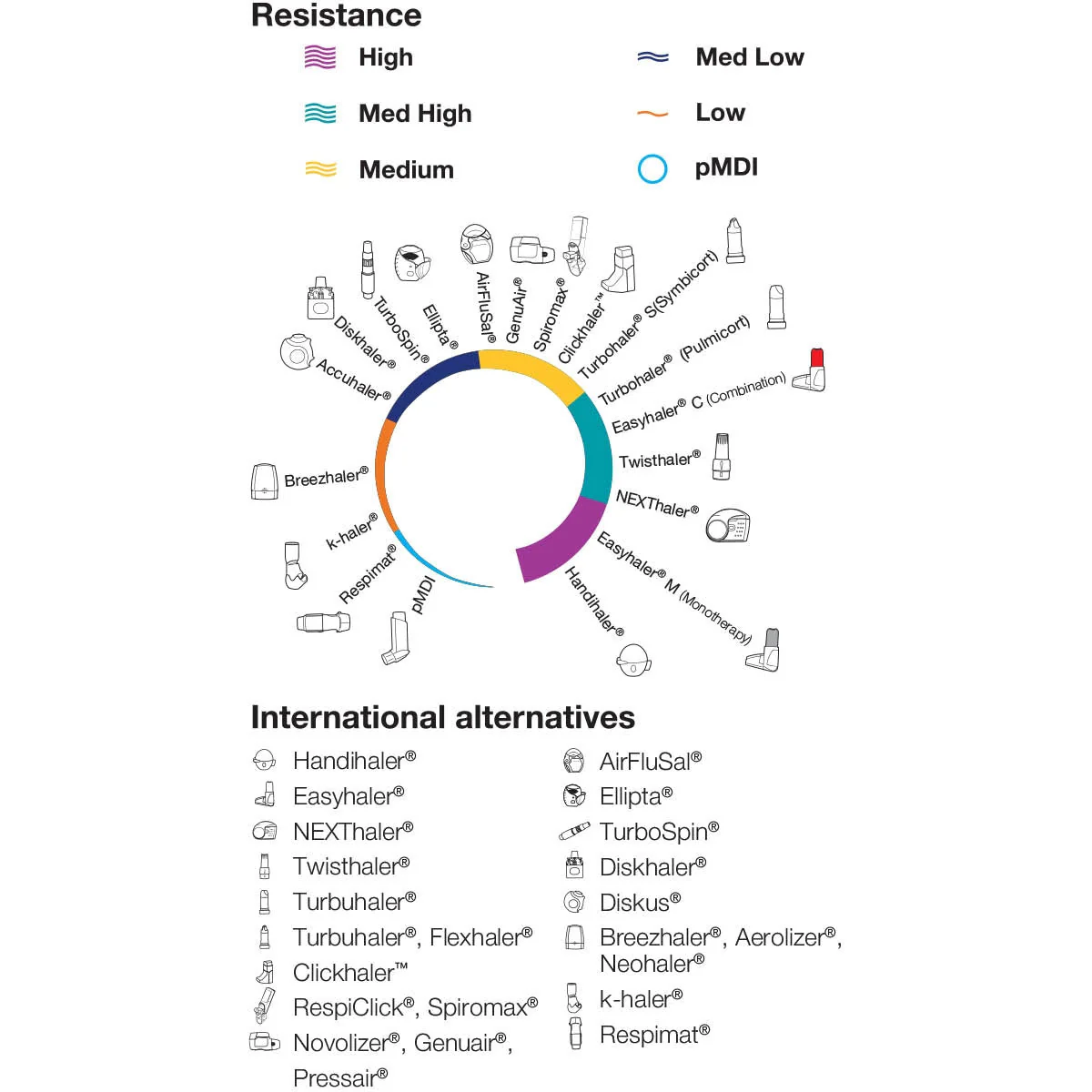

The In-Check DIAL can be set to a resistance setting to match any particular inhaler by identifying the inhaler from the chart and selecting the appropriate resistance setting. When the patient inhales their inspiratory flow rate will be shown by the pointer.

The aim is to encourage flow rates that are within the green band indicating the range of flows consistent with clinical efficacy. The arrows within the bands indicate that for DPIs a stronger flow is generally to be aimed for and for pMDIs the opposite applies, a gentle technique is better. Having acquired the correct flow rate patients can then apply this to their inhaler.

Clement Clarke

Disposable Able Spacer Pack x 10

Flo Tone CR Pack of 10

Trainhaler CR

Clement Clarke Paediatric Disposable Two Way Mouthpieces - Pack of 40

In-Check DIAL G16 Inhaler Trainer

Airmed 1000 Filters x 5

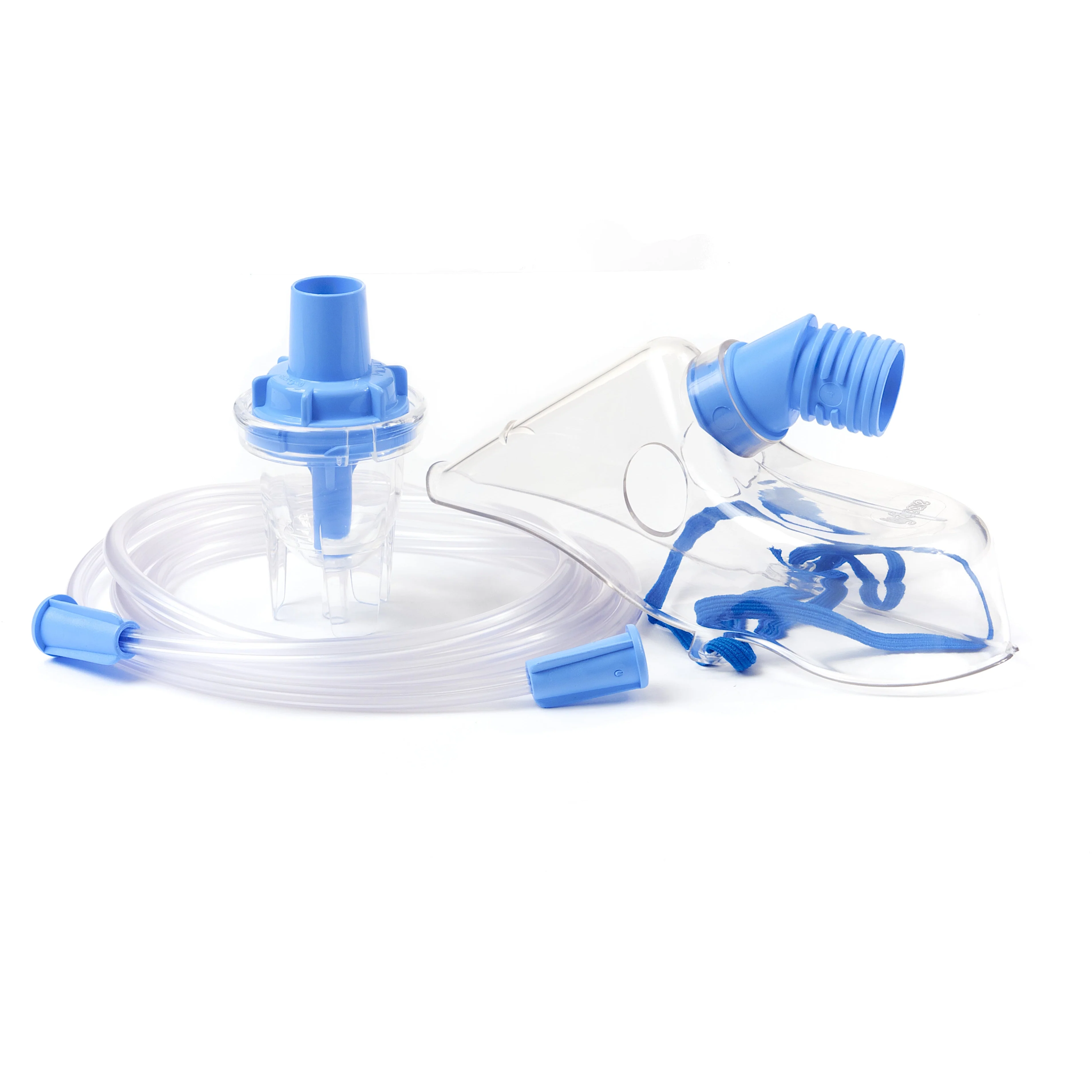

Medix Nebuliser Kit Adult - Single

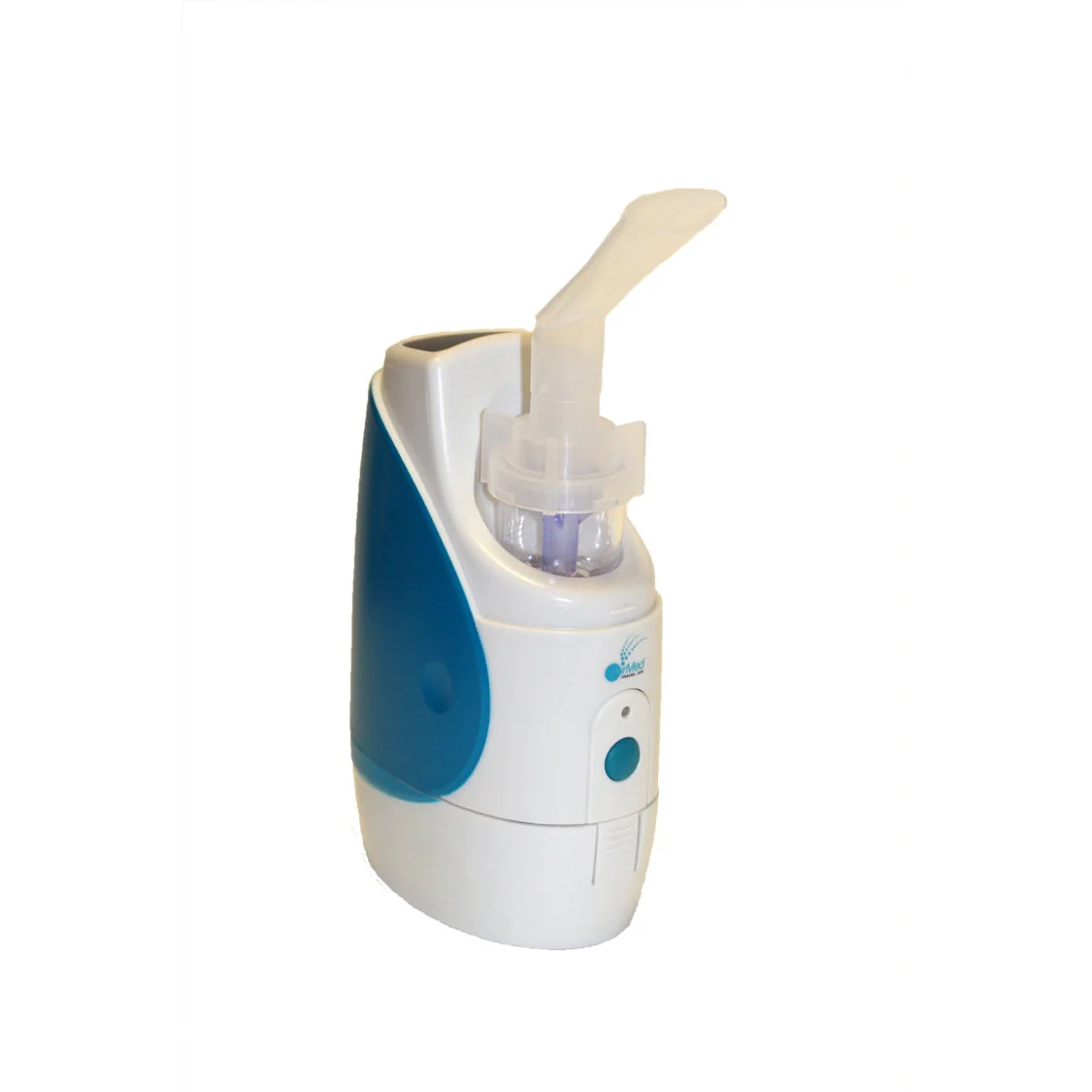

Airmed Travel-Air Nebuliser - Battery

Disposable Mouth Pieces for Peak Flow Spirometers x 455 - Clearance

Clement Clarke Adult Year Pack for Actineb CL3103001 - CLEARANCE DUE TO SHORT EXPIRY DATE

Clement Clarke Flutter

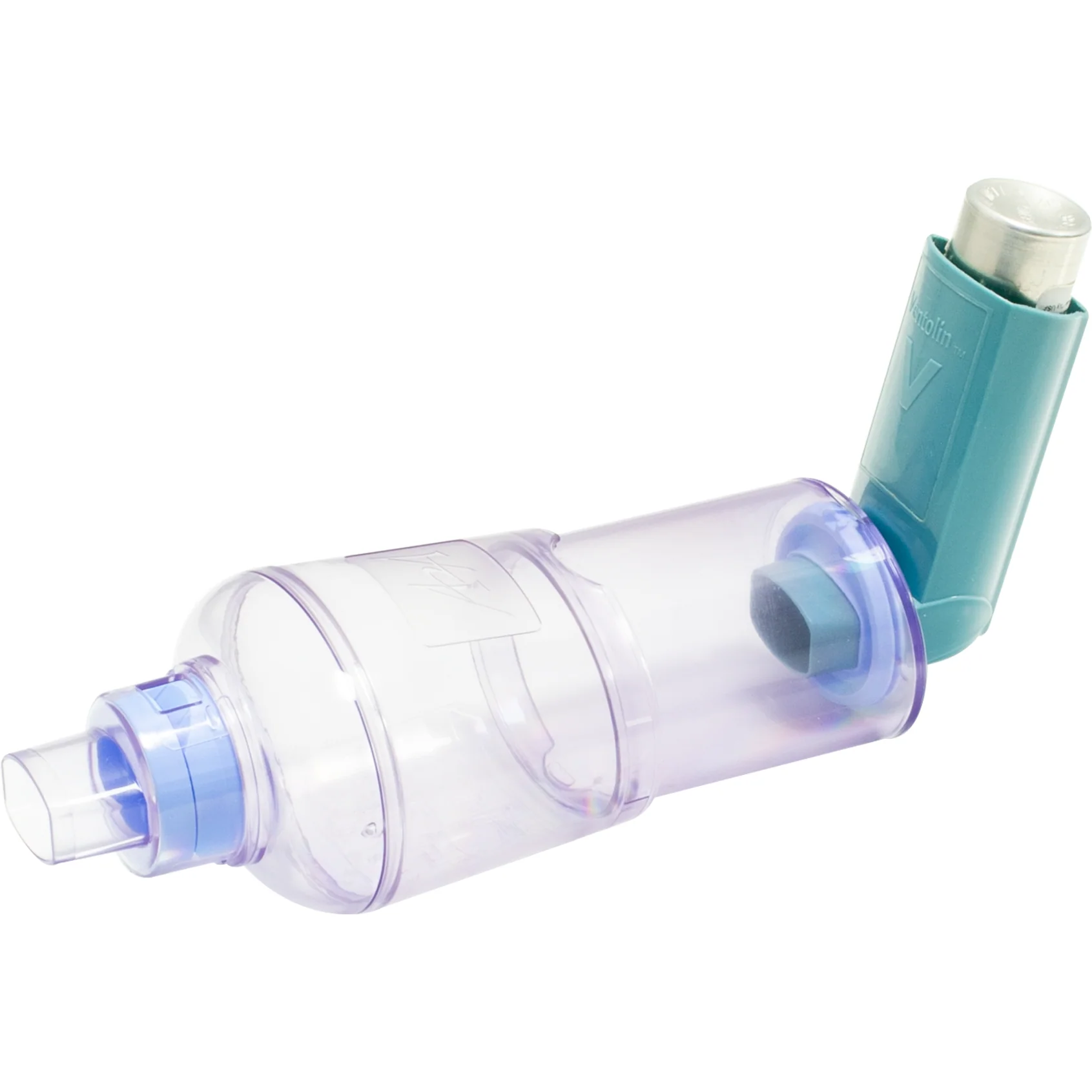

Space Chamber
