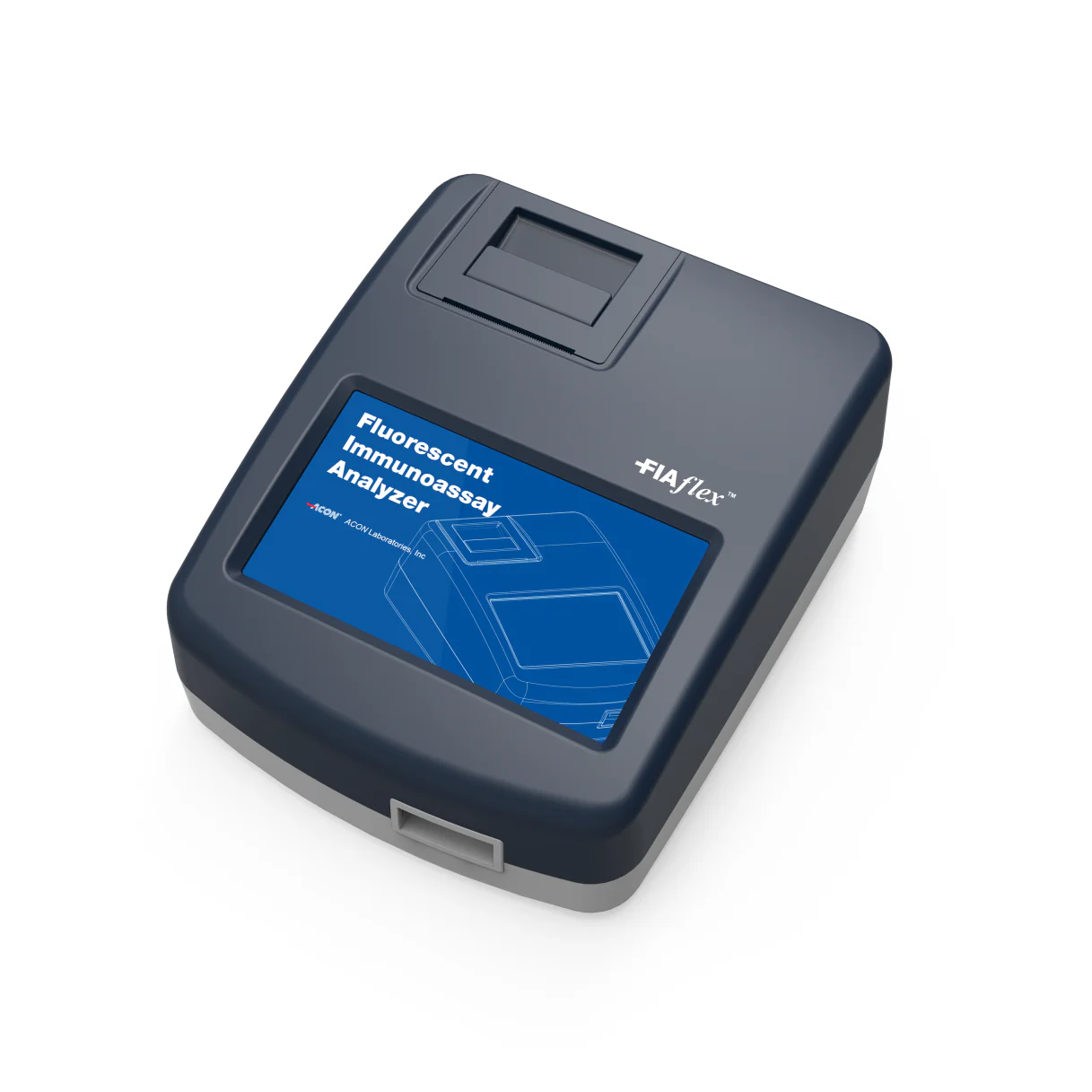

FIAflex™ Fluorescent Immunoassay Analyzer

Features:

• Easy to Use - User-friendly interface; Requires no special expertise or extensive training.
• High Accuracy and Reliability - Excellent sensitivity and specifi­city compared to molecular and viral culture methods.
• Convenient Storage Options - Small instrument size and room-temp storage suitable for any office or lab.
• Reduced User Errors - QR code scanning automatically identifi­es the test type
• Dual Testing Options - Dual testing options allow for greater testing flexibility

Specifications:

• Technology: Immunofluorescent
• Results Memory: 2,000 tests
• Operators Memory: 100 operators
• Analyzer Ports:
  Standard RS232C port for barcode reader or External Printer
  USB port for data transfer
  LAN port for Data Transfer
  WLAN port for data transfer
• Connection Capabilities:
  Internal Thermal Printer (included),
  Optional External Printer (not included),
  RS232C Barcode Reader (optional),
  USB Data Transfer Cable (optional)
• Major Readable Barcodes: Code 39 (Standard/ Full ASCII), Codabar (NW-7), Code 128, Italy Pharmacode, UPCA, EAN 128, French Pharmacode, UPCE, MSI, Industrial 25, EAN8, Plessey, Interleave 25, EAN13, Telepen, Matrix 25, Code 93, RSS
• Available Languages on Screen: English (default in US and select countries)
• Analyzer Operating Conditions:
  0 – 40 ºC (32 ºF -104 ºF);
  10%-90% Relative Humidity (non-condensing);
  ≤2000m Altitude (Atmospheric pressure 80kPa –106kPa)
• Analyzer Storage Conditions:
  -20 ºC – 55 ºC (- 4 ºF – 131 ºF);
  10%-90% Relative Humidity (non-condensing);
  ≤2000m Altitude (Atmospheric pressure 80kPa –106kPa)
• Power Source:
  Analyzer: DC 12V 5A
  Adapter: Input: 100-240 VAC, 50/60 Hz, 1.4-0.7 A
                Output: 12 VDC, 5.0 A, 60 W Max
• Weight: 3.5 lbs. (1.6 Kg)
• Dimensions (L x W x H): 27 cm x 16.5 cm x 13.9 cm (10.6” x 6.5” x 5.5”)
• Display Dimensions (L x W): 10.8 cm x 6.5 cm (4.2” x 2.6”)
