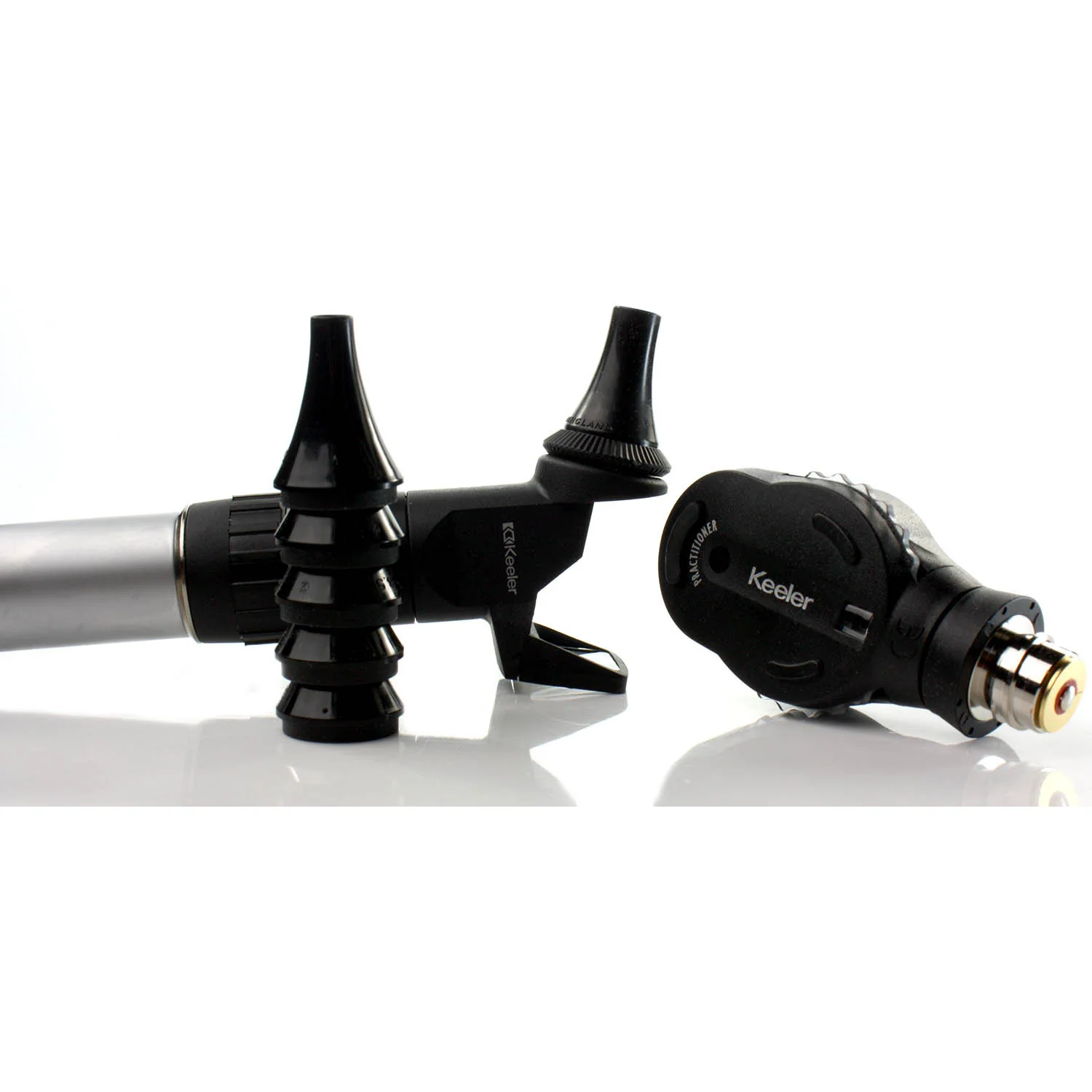

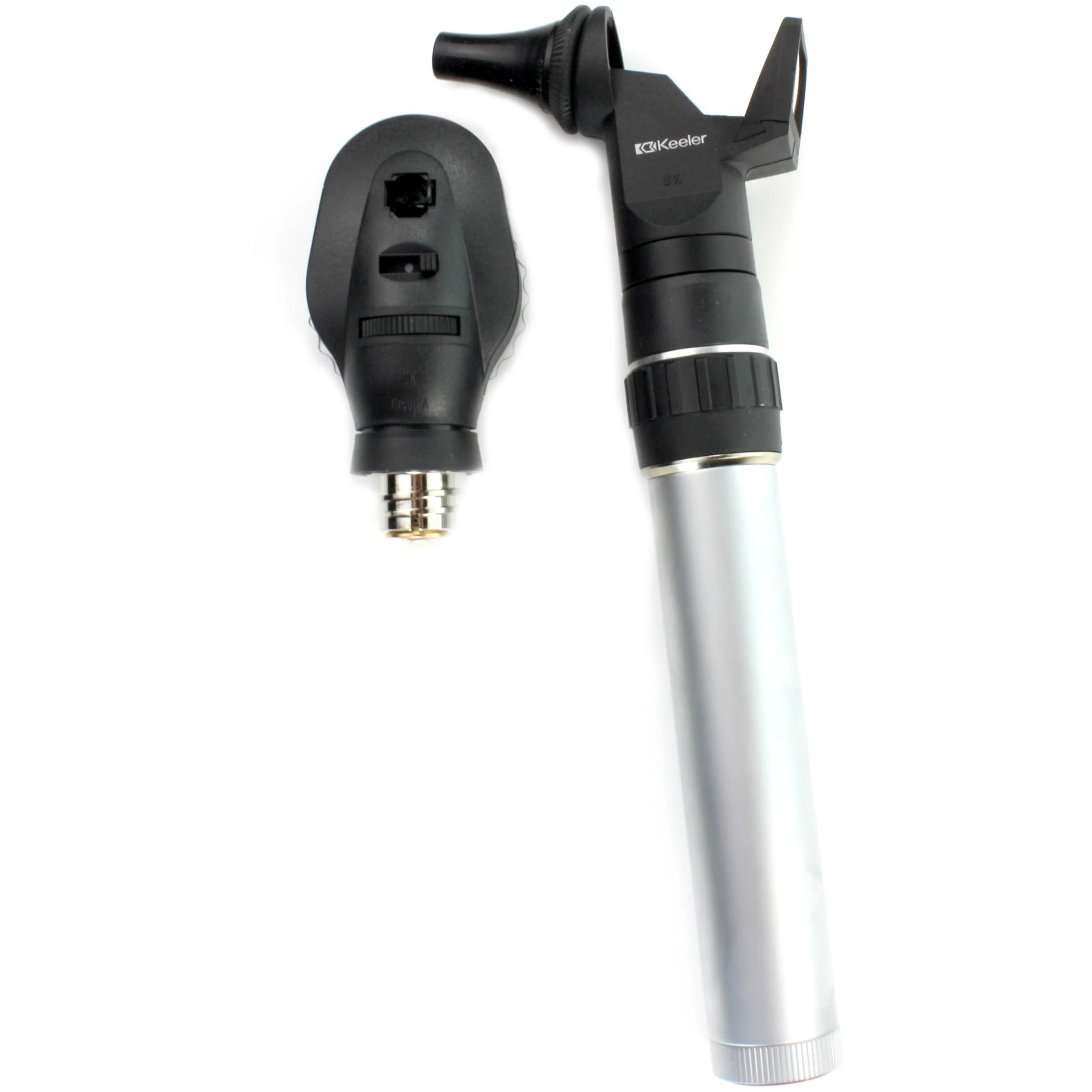

Keeler Practitioner Diagnostic Set 1729-P-1019

Please note the engraving will be displayed as two lines of 30 characters.

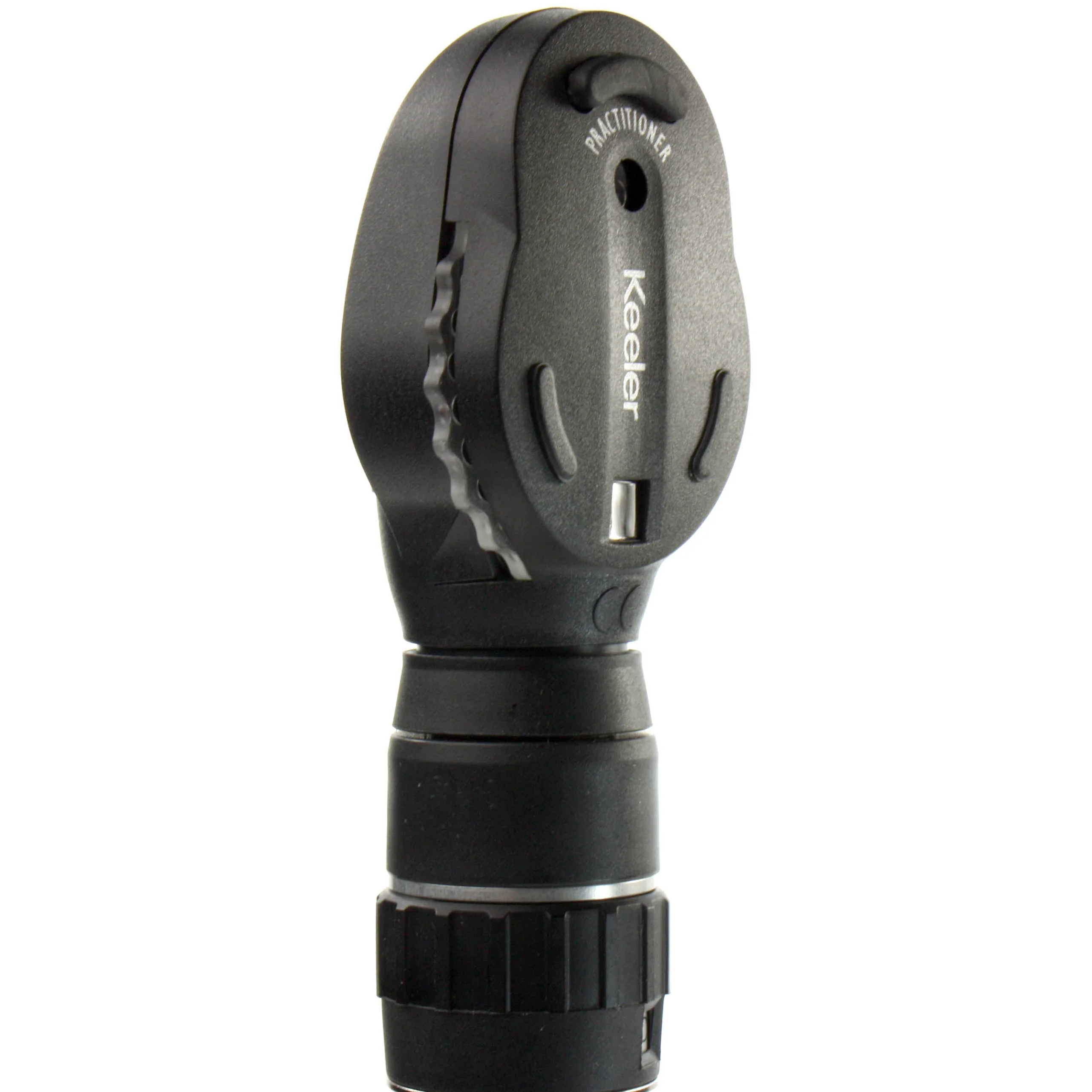

Practitioner Ophthalmoscope

• Postive action maywheel lens control allows you to select +40D to -25D
• 6 beams for full diagnostic capability
• Swing over red free filter
• Blue filter to be used in combination with Fluorescein for assessing corneal scratches

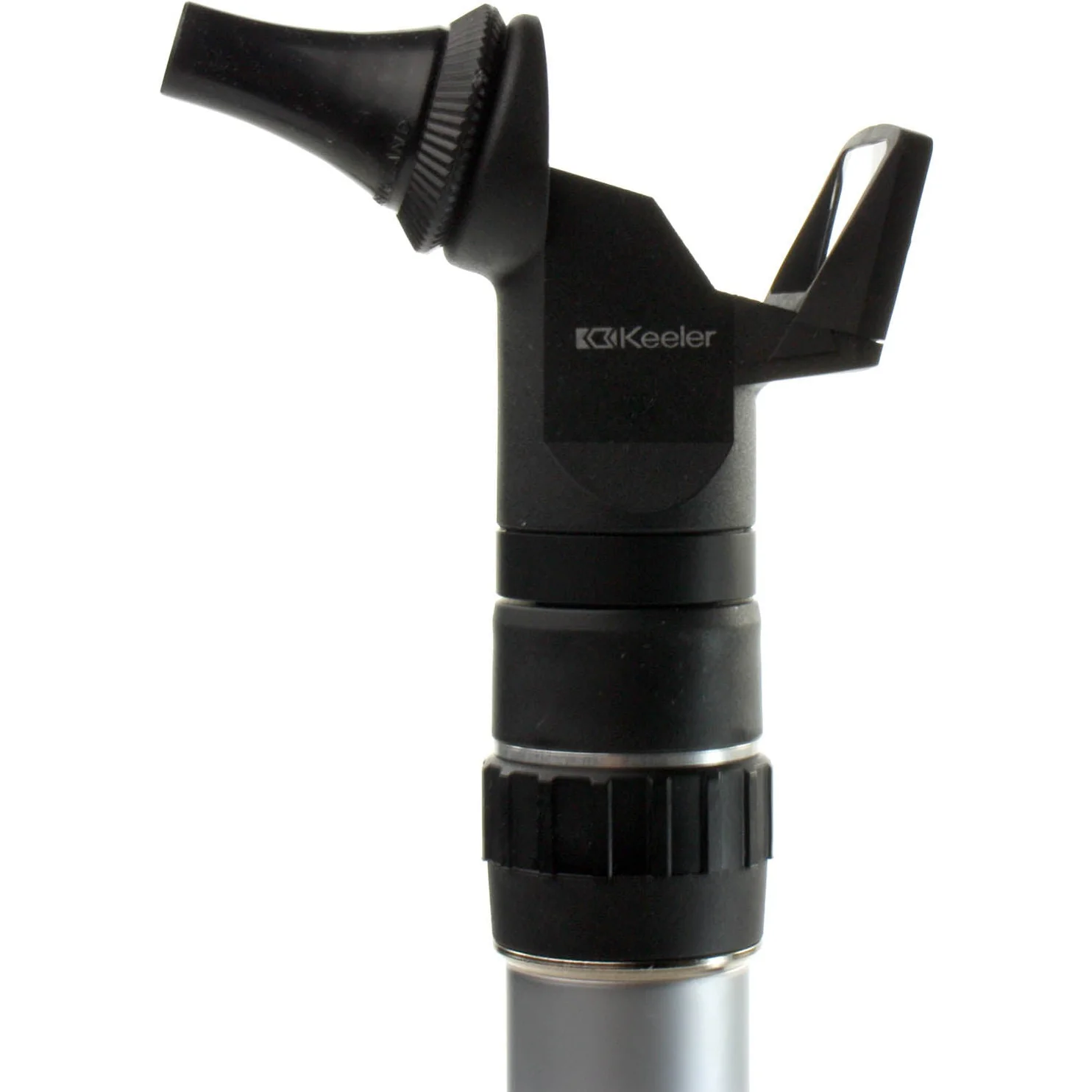

Practitioner Otosccope

• A popular otoscope that tends to be purchased by the GP or Primary Care Specialist.
• Unobstructed open style head for easy introduction of small instruments for wax or foreign body removal.
• Large slide aside 2.5x lens for clear view of aural structures and procedures under magnification.
• Facility to undertake pneumatic testing for tympanic mobility.
• Can be used with either permanent or disposable specula.

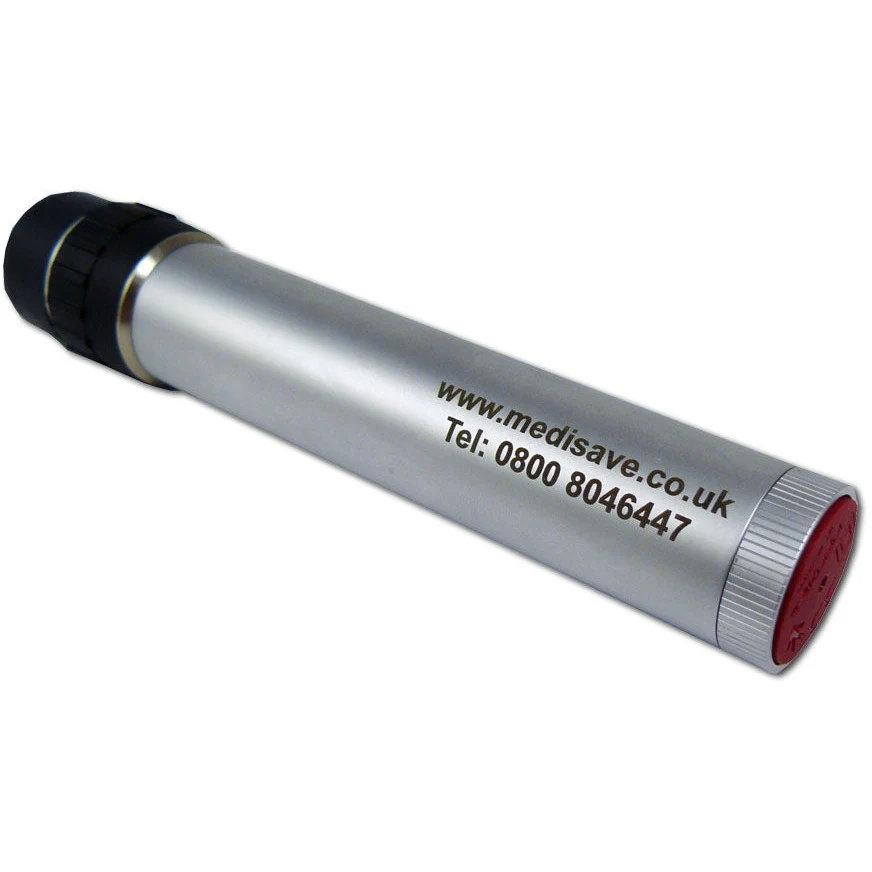

AA BATTERY HANDLE

• Rheostat easily allows light output to be tailored to application.
• Heads screw into place to keep secure during use.
• Powered by standard alkaline 'AA' batteries (not included).

Apertures, Graticules & Filters

• Wide angle - Illuminates the largest area of fundus for the best possible general diagnosis through a dilated pupil.
• Intermediate - Permits easier access through an undilated pupil and in peripheral examination. Particularly useful in paediatric examination.
• Macular - Designed specifically for examination of the macular region of the fundus where a larger beam would create excessive pupilary reaction or discomfort.
• Slit - Used primarily to determine retinal elevations and depressions but may also be used to assess anterior chamber depth.
• Fixation Cross - Projects a graticule onto the retina for assessment of the degree and direction of eccentric fixation.
• Red Free - The red free filter is used to examine blood vessels in fine detail.
