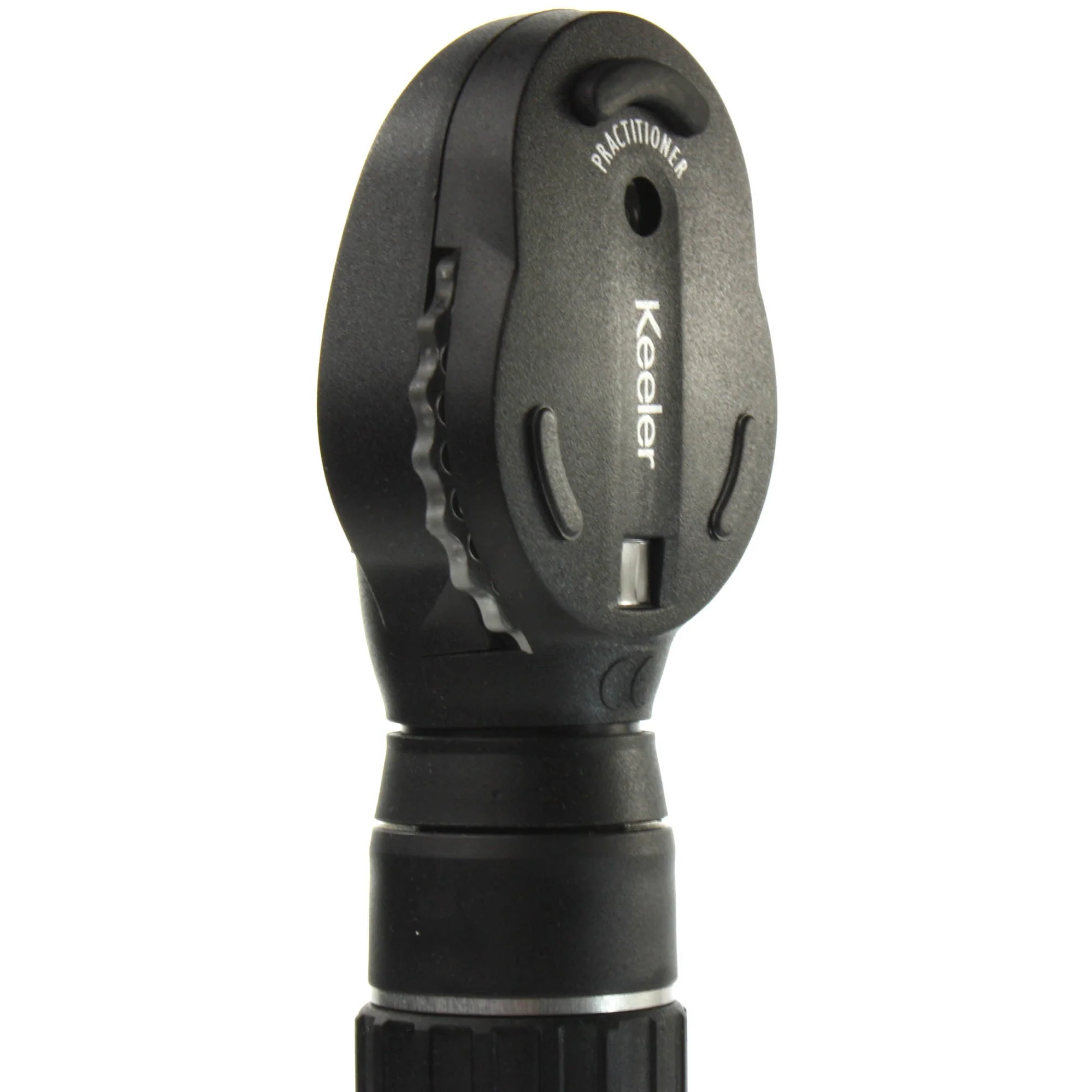

Practitioner Ophthalmoscope (LED) / Otoscope Diagnostic Set 3.6V

A greater number of beams and filters provide improved diagnostic capabilities.

Five beams for increased control over diagnostic functionality.

Additional blue filter that allows assessment of corneal scratches.

Available with a 2.8V or 3.6V Bulb or LED Illumination.

2.8V models accept AA Batteries. 3.6V models accept rechargeable 3.6V Lithium Battery, charger sold separately.

Optical Excellence, Manufactured in the UK

Features

• Positive action maywheel lens control allows you to select lens powers from +40D to -25D.
• Swing over Green, Red Free, Filter.
• Blue Filter - to be used in combination with Fluorescein for assessing corneal scratches.
• Integral Soft Brow Rest.

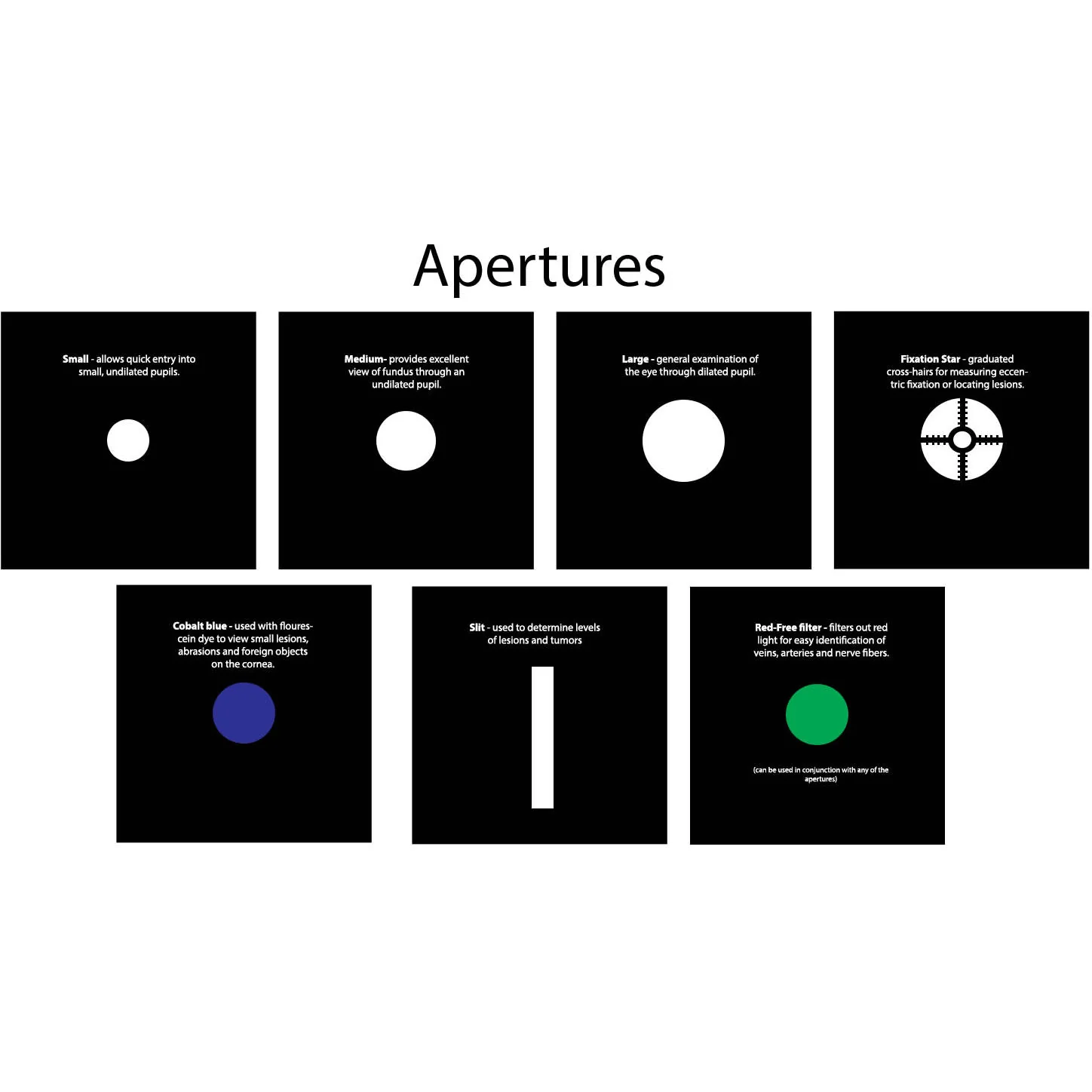

Five diagnostic beams for full diagnostic capability:

• Wide Angle - for general examination.
• Macula - for more detailed views.
• Intermediate - providing easier access for non-dilated pupils and in peripheral examination. Ideal for paediatrics.
• Slit - to determine retinal elevations and depressions. Used to access the anterior chamber depth.
• Fixation Cross - projects a graticule onto the retina for assessment of eccentric fixation.

Contents

• Practitioner ophthalmoscope
• Handle
• Spare bulb (Bulb Models Only)
• Instructions CD
• Protective case
