Welch Allyn 3.5V Diagnostic Set - LED Ophthalmoscope, Macroview LED Otoscope, Alkaline C-Cell Battery Handle and Hard Case
Welch Allyn 3.5V Diagnostic Set - LED Ophthalmoscope, Macroview LED Otoscope, Alkaline C-Cell Battery Handle and Hard Case
Compare the Welch Allyn range
Exclusive to Medisave for a limited time.
Core Diagnostic Set
Coaxial LED Ophthalmoscope + Basic LED Otoscope
£385.19 ex VATEar ExamsMacroView Otoscope Kit
MacroView LED Otoscope + USB rechargeable handle
£478.79 ex VATBest OverallFull Diagnostic Set
LED Ophthalmoscope + MacroView LED Otoscope
£487.79 ex VATWelch Allyn 3.5V Diagnostic Set
It all starts with the right physical exam tools to help access your patient.
Our diagnostic sets help keep the tools clinicians need organised when examining the eyes and ears, including:
- Welch Allyn wide-view and standard ophthalmoscopes
- Welch Allyn otoscopes

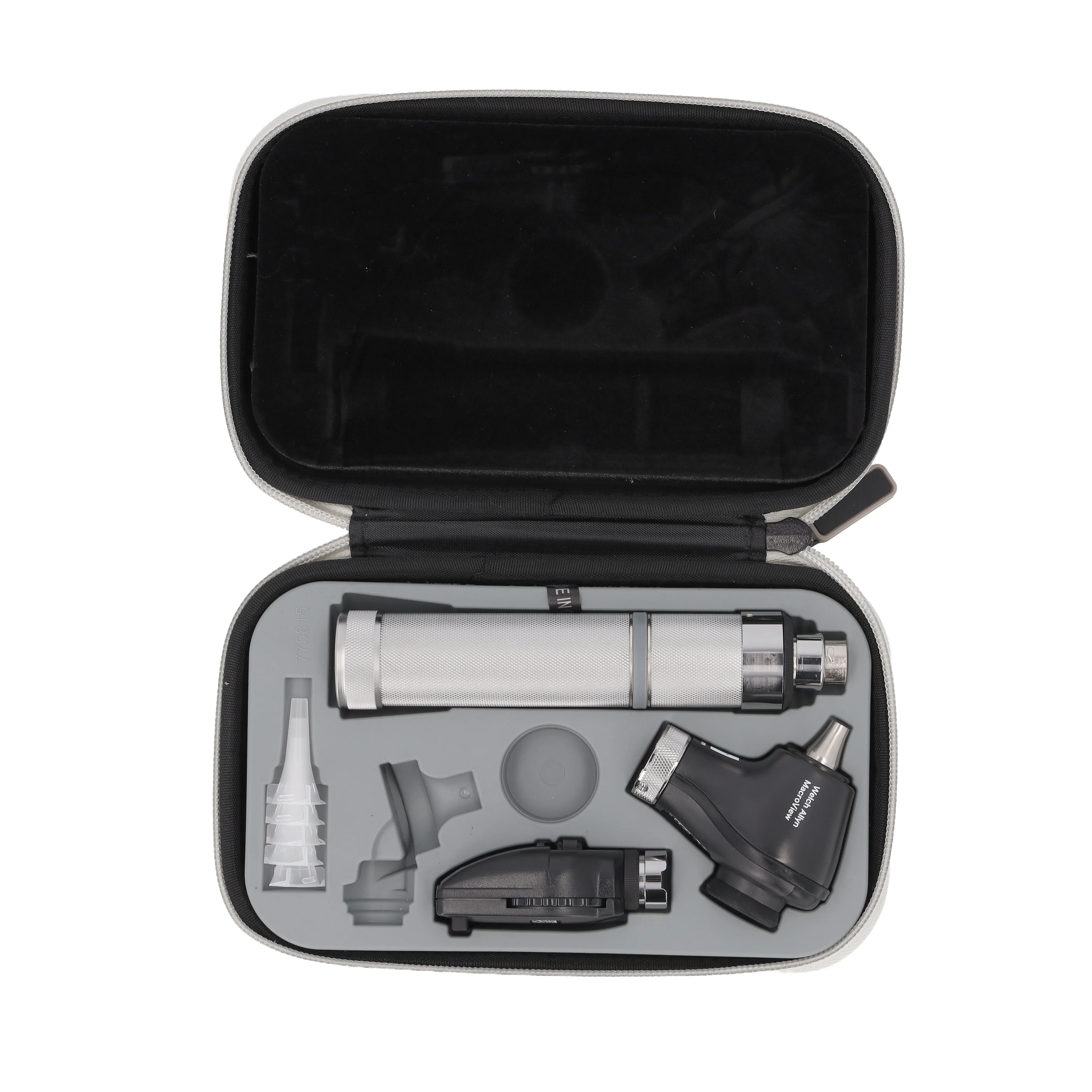

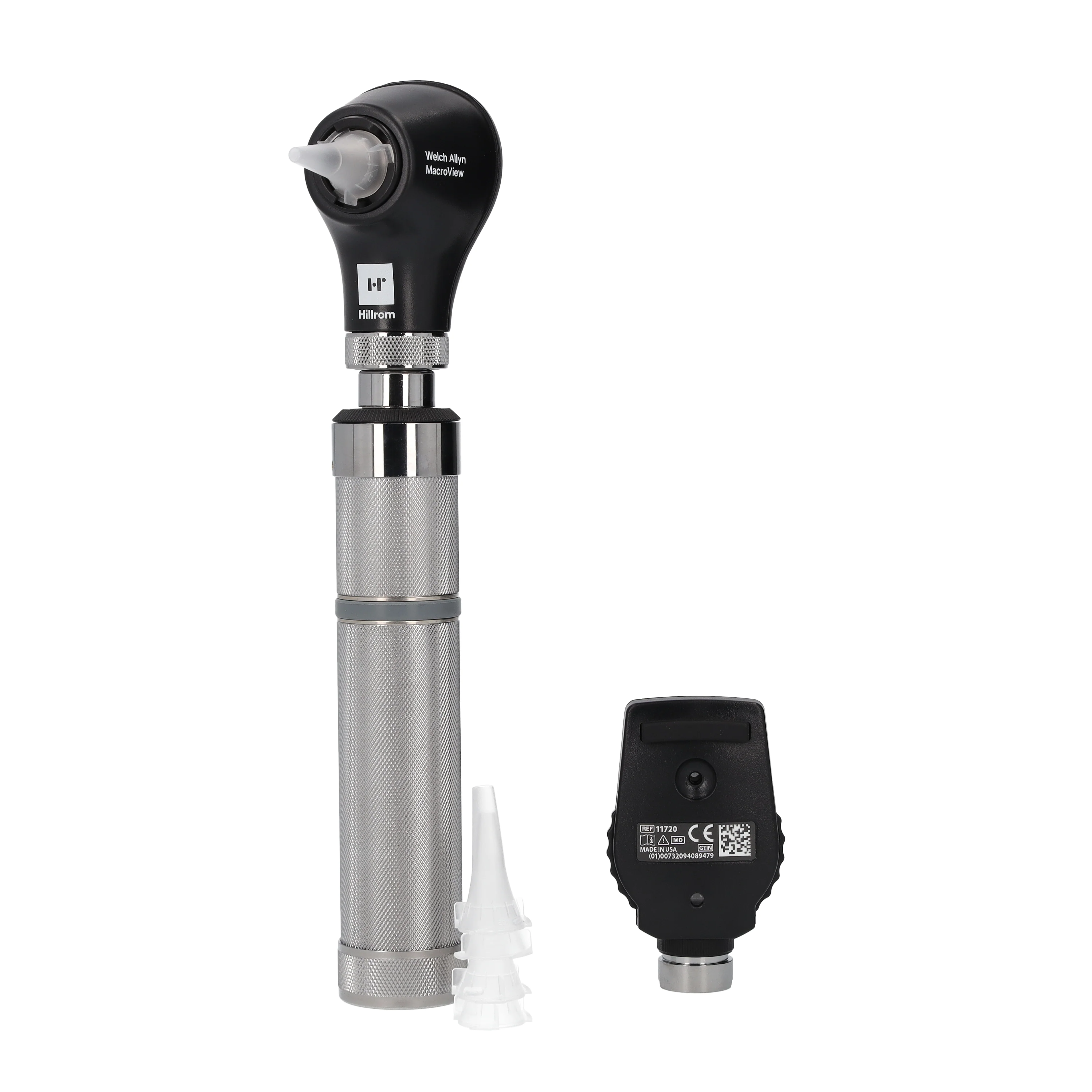

Contains:
- Coaxial LED Ophthalmoscope
- Macroview LED Otoscope
- Alkaline C-Cell Battery Handle
- Hard Case
- 5 LumiView Clear Ear Specula

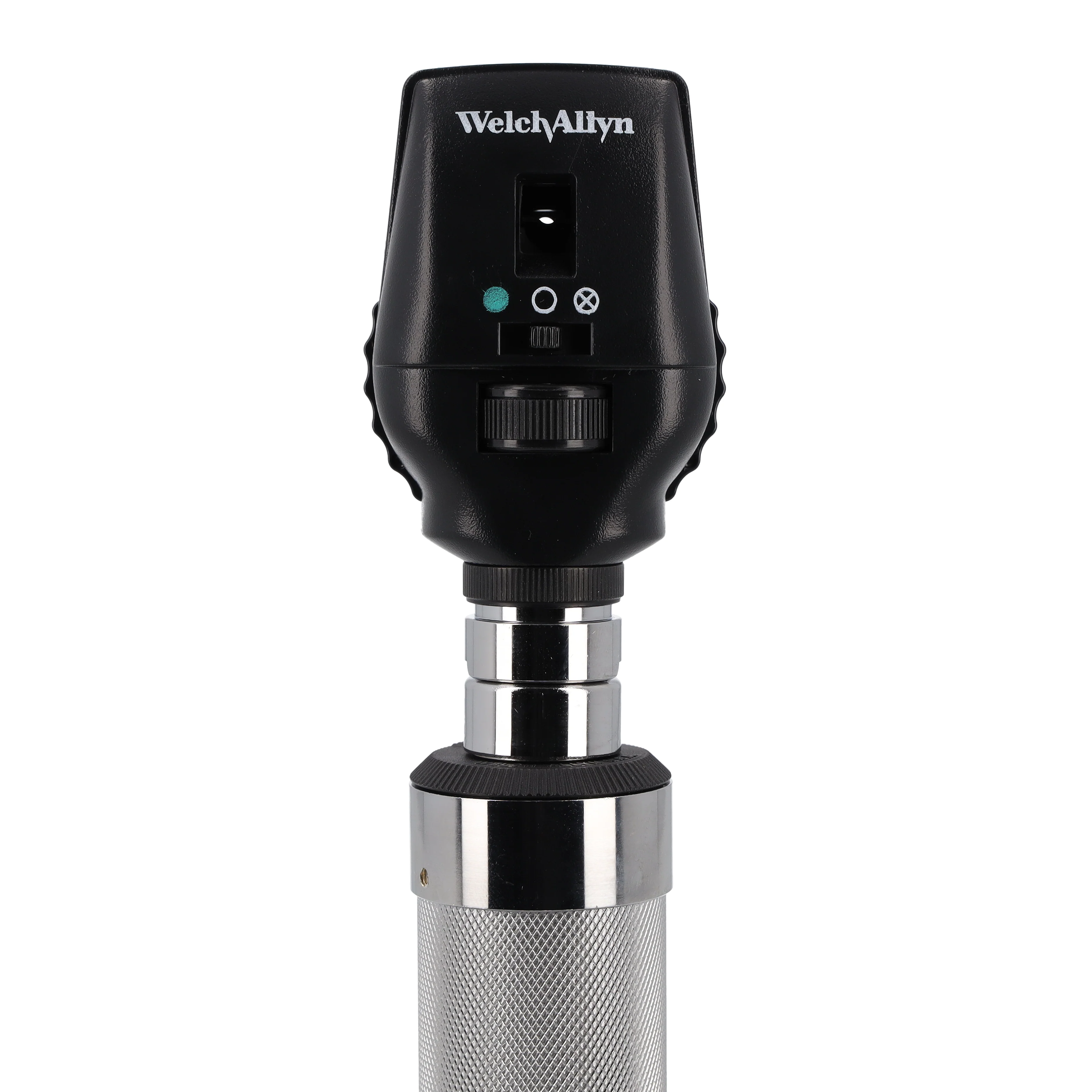

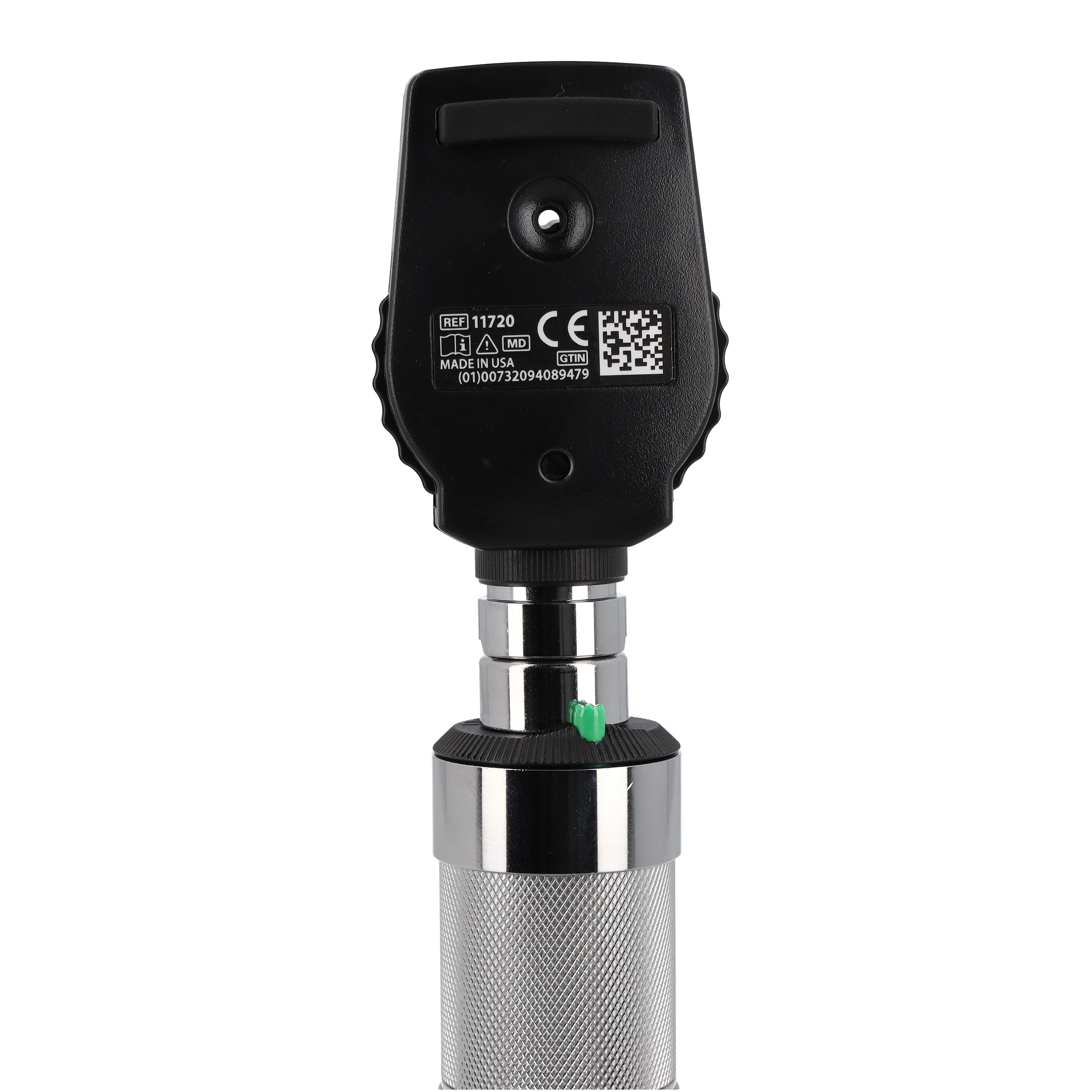

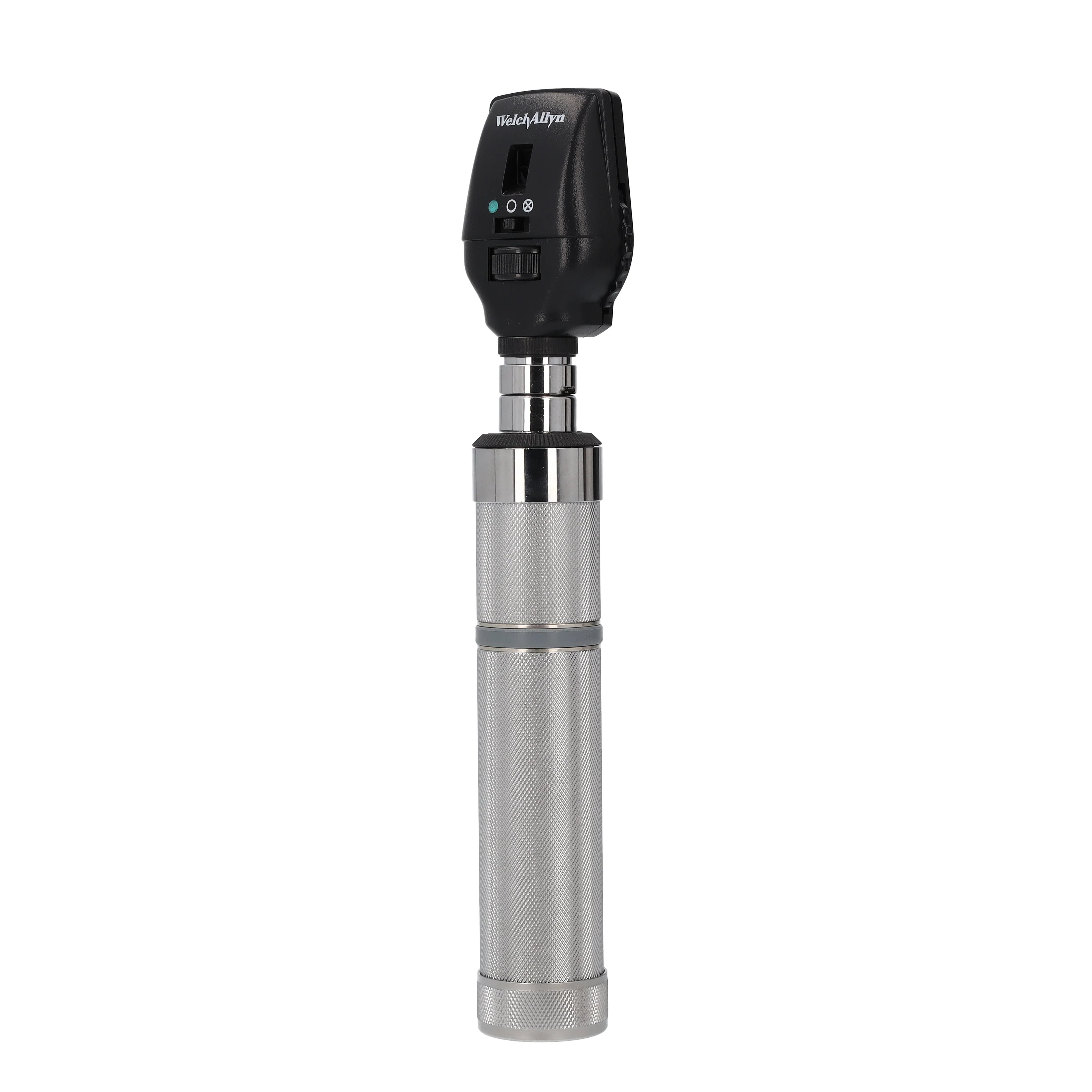

11720-L Welch Allyn LED 3.5v Coaxial Ophthalmoscope
238-2 Welch Allyn MacroView 3.5v LED Otoscope
The Welch Allyn Coaxial ophthalmoscope has advanced LED technology enabling practitioners to see true tissue colour and to provide a long-lasting and consistent performance. Being able to adjust light intensity minimises glare and improves the patients comfort.
The cobalt filter of the LED coaxial ophthalmoscope helps practitioners see small lesions, abrasions and foreign objects on the cornea.
Features
- 8 unique aperture/filter combinations for greater versatility
- 28 focusing lenses with a range of -25 to +40 diopters
- Patented coaxial optics with long-lasting LED illumination.
- Includes polarizing and cobalt blue filters for cornea examination
- Compatible with all Welch Allyn 3.5V power sources
- 1 year warranty
- Weight 0.12 KG
- W x H x D 7.3 x 4.9 x 12.9cm

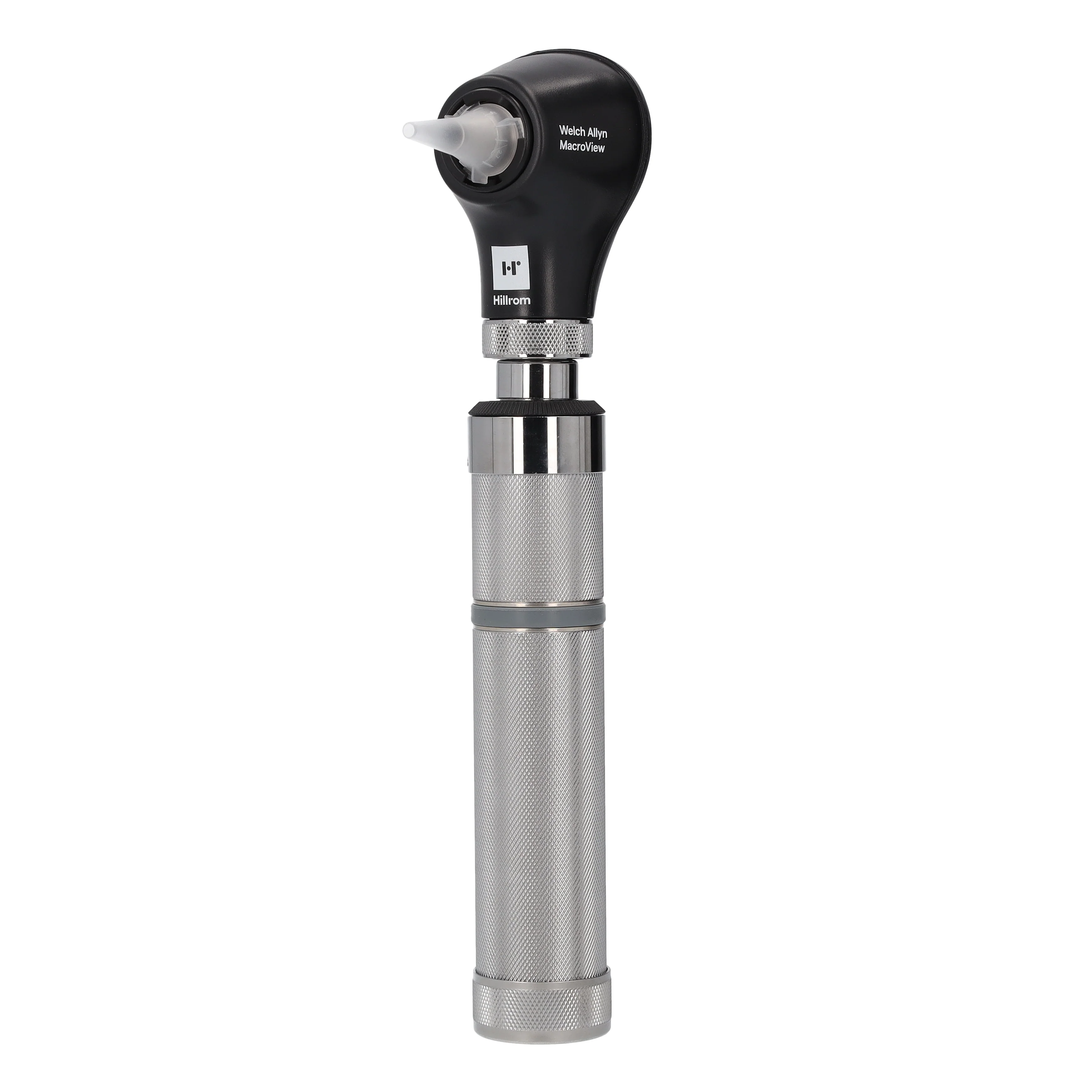

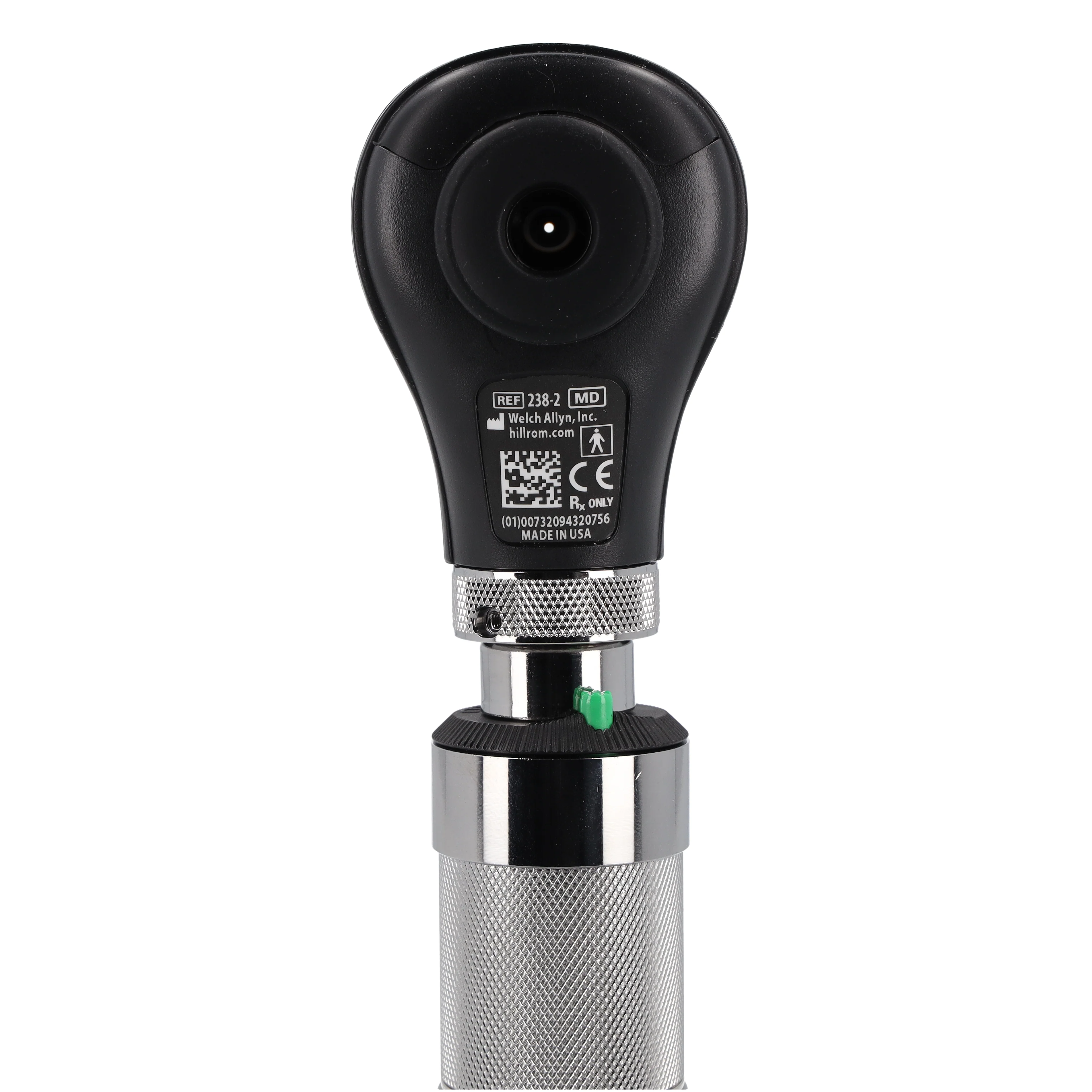

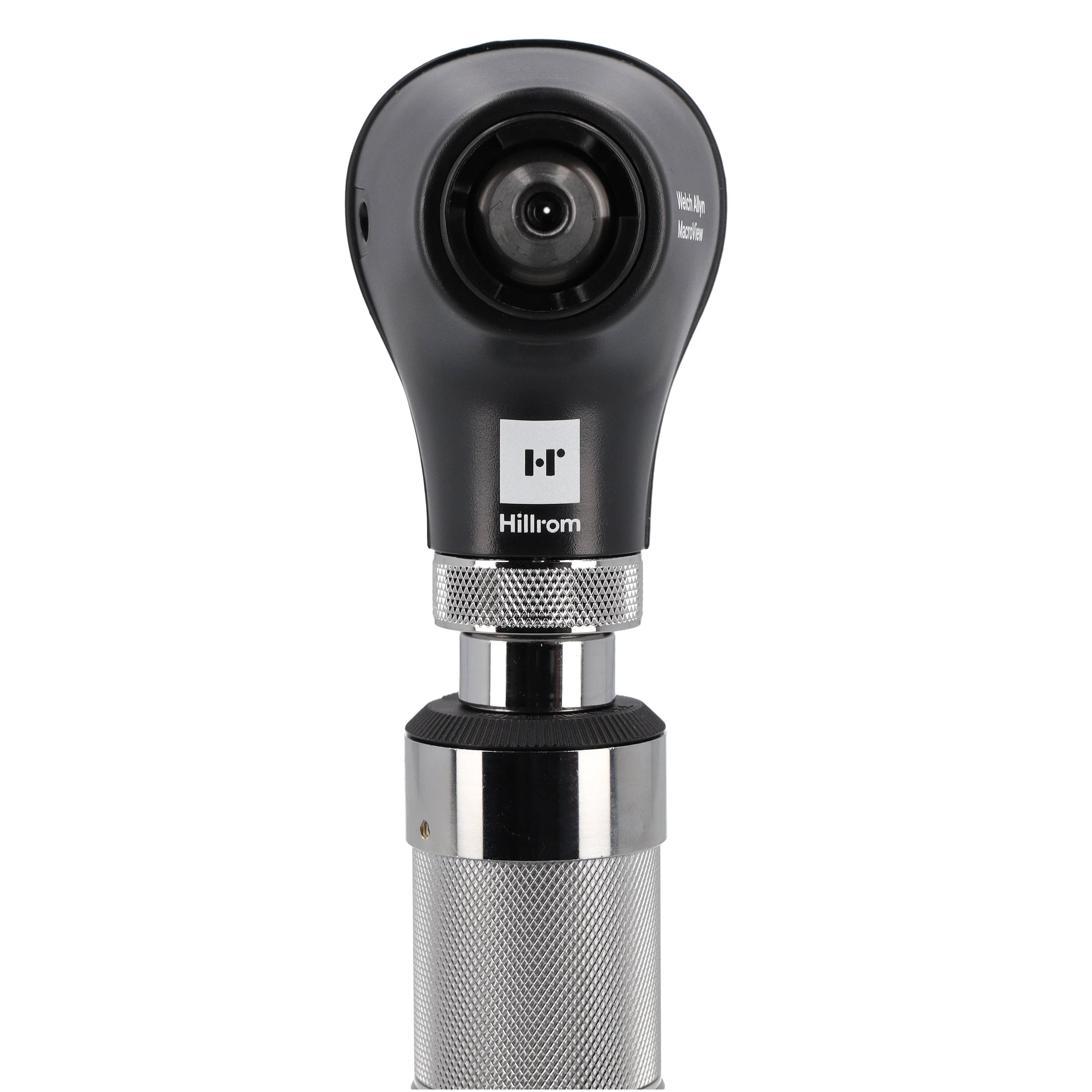

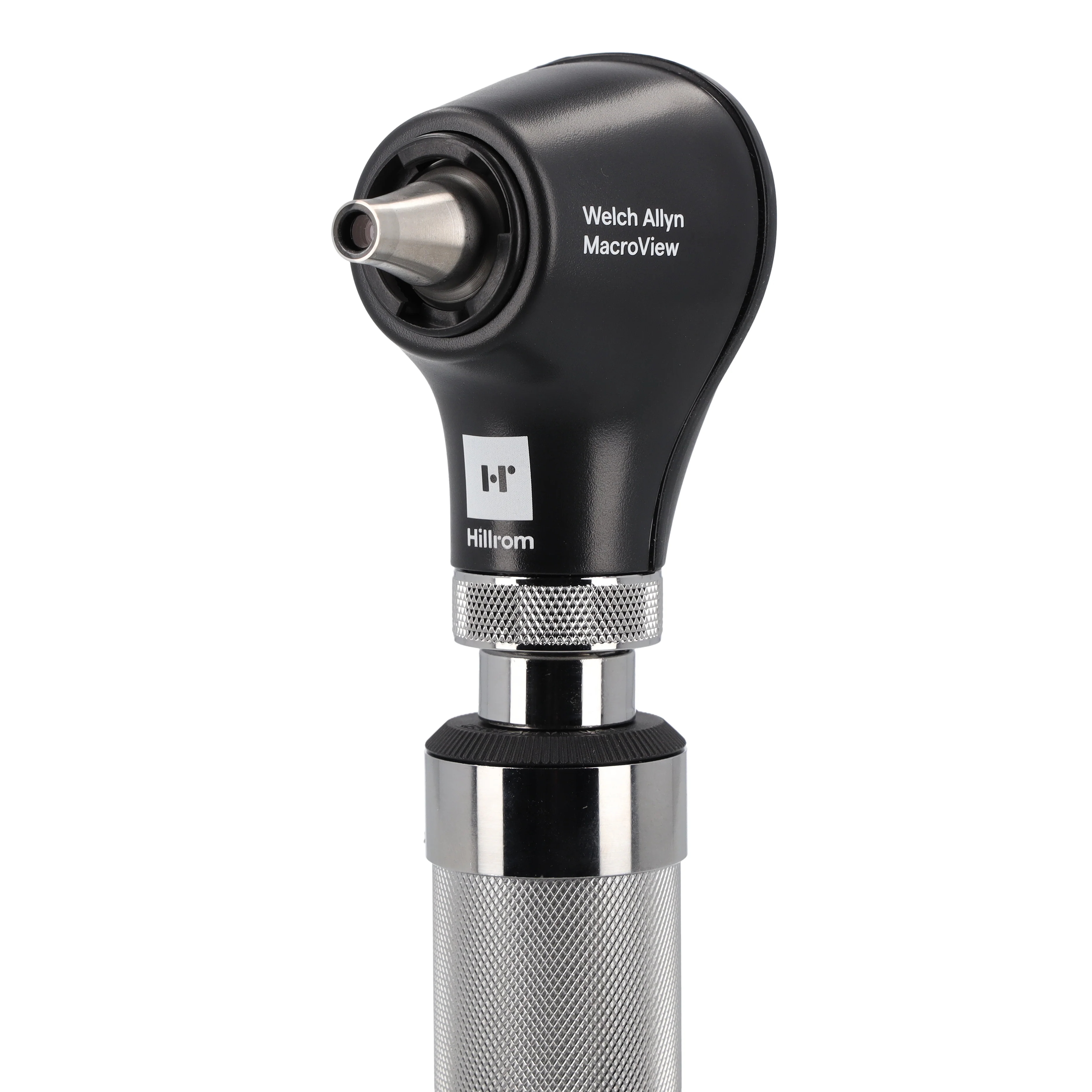

238-2 Welch Allyn MacroView 3.5v LED Otoscope
The Welch Allyn MacroView otoscope has been redesigned with a familiar form and feel and views you have to see. This professional otoscope offers a 3X larger viewing area for ear exams when compared to views through a standard or pocket otoscope.
When paired with long-lasting LED illumination and our Welch Allyn LumiView™ Clear Single-Use Ear Specula, experience up to 8X* brighter views than those seen through a black ear speculum.
Features
- 2.5 times the field of view compared to that of a single-lens otoscope
- Focus-free design
- Long lasting LED illumination
- Ring fiber optics
- 5200 lux total light output
- 1 year warranty
- Weight 0.279 KG
- W x H x D 11.3 x 5.6 x 15.4cm

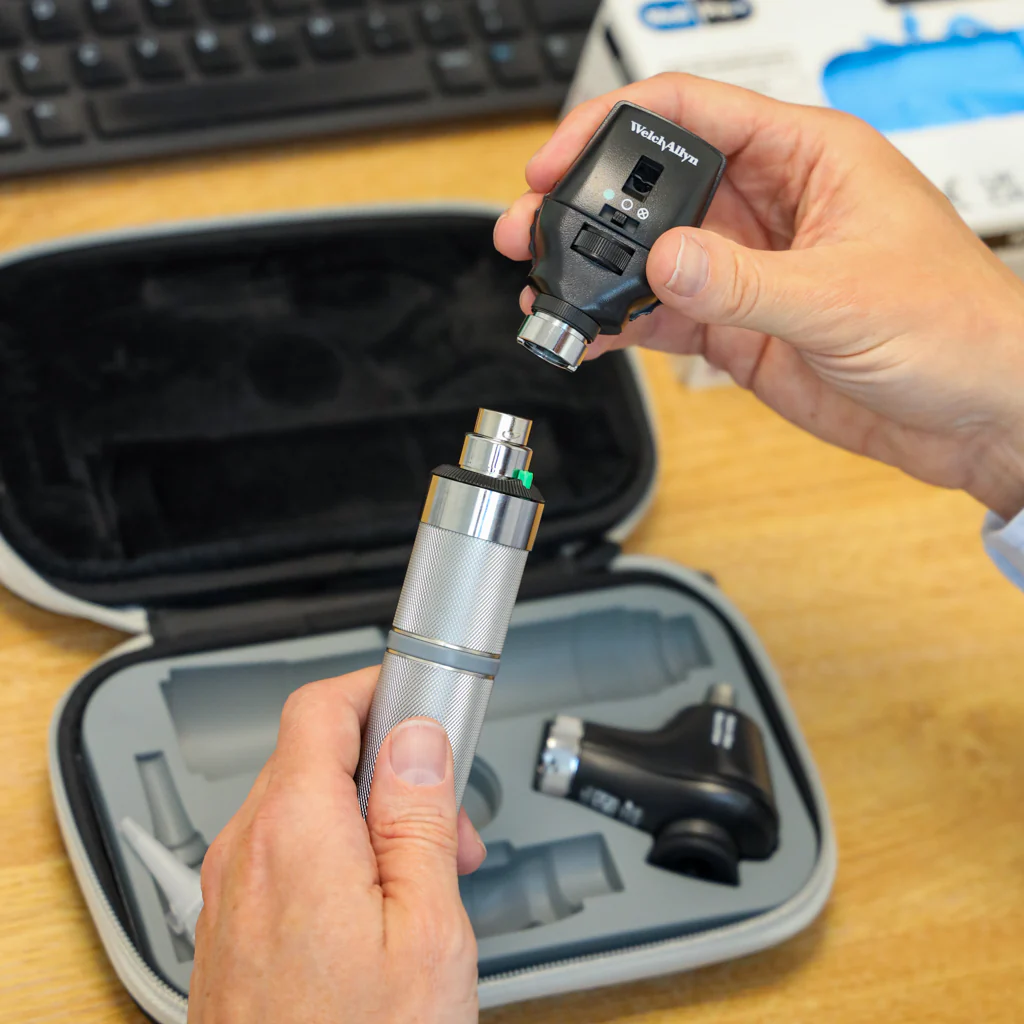

71020 Welch Allyn 3.5v Alkaline C-Cell Battery Handle
The 3.5v alkaline Welch Allyn c-cell battery handle is a rechargeable handle that is compatible with all 3.5v Welch Allyn otoscope and ophthalmoscope heads. The battery handle comes with an adjustable rheostat which allows the user to adjust the light intensity.
Comes with two alkaline c batteries.
Features
- Smooth, nonabrasive non-slip grip
- Fits all Welch Allyn 3.5 V instrument heads

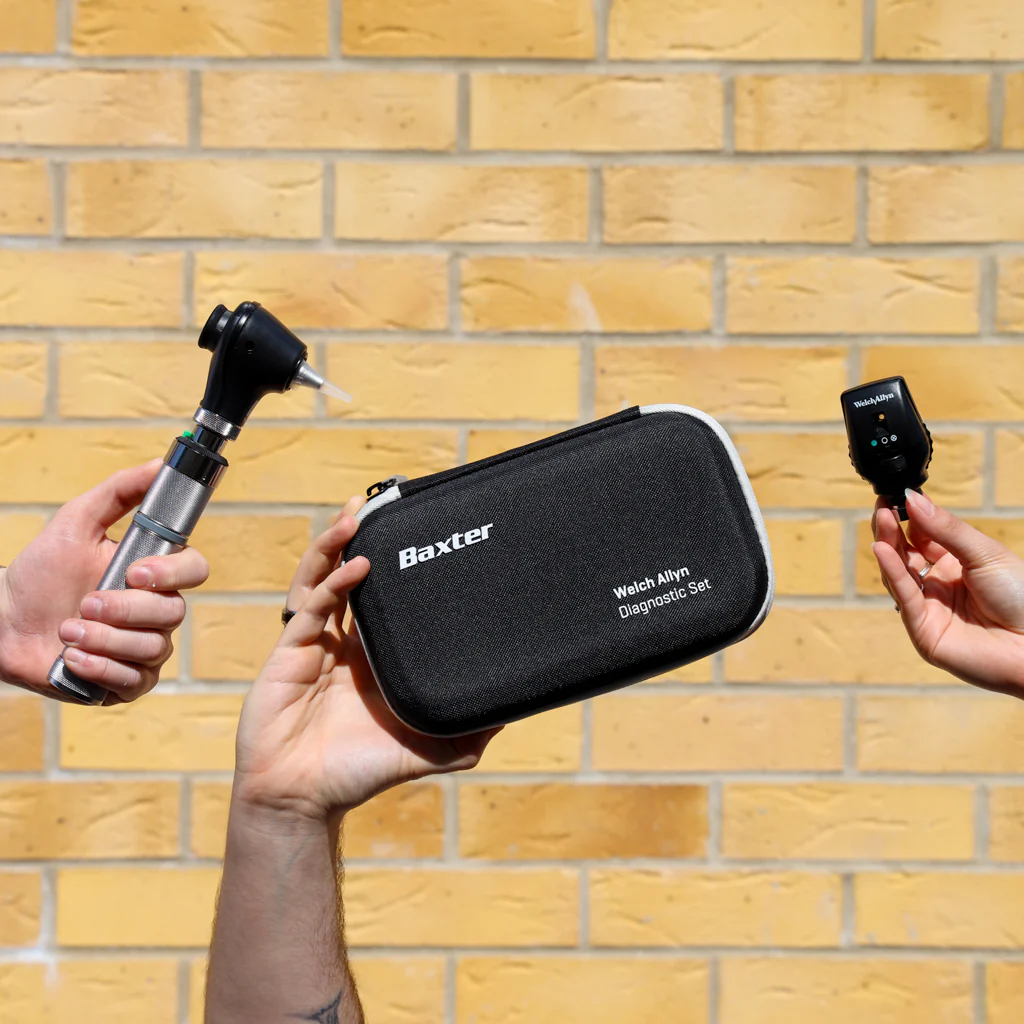

Welch Allyn Diagnostic Set Hard Case
Hard case for storing and transporting Welch Allyn diagnostic sets. Holds one version of any Welch Allyn handles, either of the otoscope heads, and the 117 ophthalmoscope head.
Ideal for medical professionals who are on the go and need to keep their diagnostic equipment safe and secure.
Ideal for
- GPs, practice nurses, and clinicians
- ENT screening and routine ear checks
- Community and mobile healthcare professionals
- Medical and nursing students in training environments
FAQs
What is a diagnostic set?
A diagnostic set is a portable kit designed for healthcare professionals to carry essential tools to examine patients ears, eyes, nose and throat. A diagnostic set is usually made up of an otoscope head, an ophthalmoscope head and a share power handle which is either rechargeable or battery powered.
What is a diagnostic set used for?
A diagnostic set is used to examine patients ears, eyes, nose and throat and help medical professionals identify or monitor either disease, ongoing conditions or the effectiveness of treatments.
